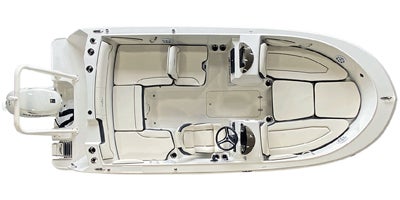

2022 Stingray SC 172
Boat Specifications
Model History
MSRP: $24,345
Family Name | SC |
Generic Type (Primary) | Deck |
Manufacturer Country | USA |
Major Revision Year | 2021 |
Revision Status | Carryover |
Competitor Code | BOA22DBE0000 |
Introduction Year | 2021 |
IsEmbargoed | No |
IsWIP | No |
IsPrelim | No |
IsCurrent | Yes |
Parent Company | Stingray® Boat Company |
Length (in/mm/ft/m) | 207 / 5300 / 17.25 / 5.3 |
Length (ft/ft) | 17 |
Length (ft/in) | 3 |
Beam (in/m) | 90 / 2.3 |
Bridge Clearance (in/m) | 41 / 1 |
Draft (Drive Up) (in/mm) | 11.5 / 292.1 |
Deadrise (deg) | 18 |
Transom Height (mm/in) | 508 / 20 |
Number Of Pontoons | 0 |
Dry Weight (lbs/kg) | 1900 / 861.8 |
Fuel Capacity (gal/l) | 21 / 79.5 |
Number of Passengers | 7 |
Weight Capacity (lbs/kg) | 2000 / 907.2 |
Min Recommended Horsepower (bhp/kW) | 70 / 52.2 |
Max Recommended Horsepower (bhp/kW) | 90 / 67.2 |
Number Of Fresh Water Holding Tanks | 0 |
Total Fresh Water Tank Capacity (gal/l) | 0 / 0 |
Total Gray Water Tank Capacity (gal/l) | 0 / 0 |
Total Black Water Tank Capacity (gal/l) | 0 / 0 |
Number Of Water Ballast Tanks | 0 |
Total Water Ballast Tank Capacity (gal/l) | 0 / 0 |
Engine Brand Name | DF |
Engine Type | In-line |
Cylinders | 4 |
Engine Stroke | 4-Stroke |
Horsepower (bhp/kW) | 90 / 67.2 |
Horsepower RPM | 5800 |
Cooling | Water (Open Loop) |
Valves | 16 |
Valves Per Cylinder | 4 |
Valve Configuration | DOHC |
Bore (mm/in) | 75 / 3 |
Stroke (mm/in) | 85 / 3.3 |
Displacement (l) | 1.5 |
Starter | Electric |
Fuel Requirements | Regular |
Fuel Type | Gas |
Turbocharged | No |
Supercharged | No |
Engine Model Code | DF90ATL |
Engine Manufacturer | Suzuki |
Engine Trim | DF90ATL |
Full Throttle RPM Range Low | 5300 |
Full Throttle RPM Range High | 6300 |
Engine Dry Weight (lbs/Kg) | 343 / 156 |
Salt Water Capable | Yes |
Engine Alert System Type | Visual |
Emergency RPM Reduction | Yes |
Number Of Engines | 1 |
Engine Configuration | Outboard |
Fuel Injector | Yes |
Carburetor | No |
Carburetion Type | Fuel Injected |
Tachometer | Standard |
Speedometer | Standard |
Fuel Level Warning Type | Gauge |
Trim Indicator | Standard |
Propulsion Type | Propeller |
Gear Ratio (s) | 2.59:1 |
Trim System Type | Power |
Twin Propeller | No |
Counter Rotating Capable | No |
Outboard Steering Control | Remote |
Auto Pilot | No |
Hull Material | Fiberglass |
Swim Platform | Standard |
Boarding Ladder | Standard |
Front Curtain | No |
Side Curtains | No |
Aft Curtain | No |
Aft Sunshade | No |
Camper Back | No |
Bow Cover | No |
Bridge Enclosure | No |
Bilge System Type | Automatic Siphon / Electric Pump |
Helm Seating Configuration | Chair |
Number Of Helm Seats | 1 |
Helm Roof Type | Open Top |
Pilot House Door | No |
Cockpit Flooring Type | Fiberglass |
Cockpit Table | No |
Number Of Cockpit Chairs | 1 |
Number Of Cockpit Sofas | 1 |
Number Of Open Bow Seats | 4 |
Number Of Sofas | 0 |
Number Of Chairs | 0 |
Number Of Convertible Beds | 0 |
Number Of Full Beds | 0 |
Number Of Single Beds | 0 |
Total Sleeping Capacity | 0 |
Number of Queen Beds | 0 |
Galley Table Configuration | No Galley Table |
Number Of Bridge Seats | 0 |
Bridge Carpeting | No |
Bridge Table | No |
Number Of Bridge Chairs | 0 |
Number Of Bridge Sofas | 0 |
Total Baitwell Capacity (gal/l) | 0 / 0 |
Baitwell Pump | No |
Cockpit Heater | No |
Cabin Heater | No |
Bridge Heater | No |
Walk-Through Windshield | No |
Brand Name | Fusion® |
Satellite | No |
Bluetooth® Audio | Yes |
Mobile App Instrumentation | No |
Wi-Fi Capable | No |
Ski / Wakeboard Storage | Standard |
