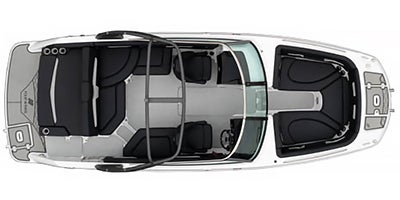

2022 Four Winns HD HD5
Boat Specifications
Model History
MSRP: $95,538
Family Name | HD |
Generic Type (Primary) | Deck |
Manufacturer Country | USA |
Major Revision Year | 2017 |
Revision Status | Carryover |
Competitor Code | BOA22DBK0000 |
Introduction Year | 2017 |
IsEmbargoed | No |
IsWIP | No |
IsPrelim | No |
IsCurrent | Yes |
Parent Company | Four Winns, LLC |
Length (in/mm/ft/m) | 292 / 7400 / 24.33 / 7.4 |
Length (ft/ft) | 24 |
Length (ft/in) | 4 |
Beam (in/m) | 101 / 2.6 |
Bridge Clearance (in/m) | 56 / 1.4 |
Draft (Drive Up) (in/mm) | 18 / 460 |
Draft (Drive Down) (in/mm) | 35 / 889 |
Deadrise (deg) | 20 |
Number Of Pontoons | 0 |
Dry Weight (lbs/kg) | 3760 / 1705 |
Fuel Capacity (gal/l) | 55 / 208 |
Number of Passengers | 13 |
Weight Capacity (lbs/kg) | 2000 / 907 |
Min Recommended Horsepower (bhp/kW) | 300 / 149.2 |
Max Recommended Horsepower (bhp/kW) | 350 / 223.9 |
Number Of Fresh Water Holding Tanks | 1 |
Total Fresh Water Tank Capacity (gal/l) | 12 / 45 |
Engine Brand Name | MerCruiser® |
Engine Type | V8 |
Cylinders | 8 |
Engine Stroke | 4-Stroke |
Horsepower (bhp/kW) | 300 / 224 |
Cooling | Water (Open Loop) |
Valves | 16 |
Valves Per Cylinder | 2 |
Valve Configuration | OHV |
Bore (mm/in) | 101.6 / 4 |
Stroke (mm/in) | 95.3 / 3.75 |
Displacement (l) | 6.2 |
Starter | Electric |
Fuel Requirements | Regular |
Fuel Type | Gas |
Turbocharged | No |
Supercharged | No |
Engine Manufacturer | Mercury |
Engine Trim | 6.2L 300 ECT Bravo Three® |
Full Throttle RPM Range Low | 5000 |
Full Throttle RPM Range High | 5400 |
Engine Dry Weight (lbs/Kg) | 862 / 391 |
Salt Water Capable | Yes |
Engine Alert System Type | Visual / Audible |
Emergency RPM Reduction | Yes |
Number Of Engines | 1 |
Engine Configuration | Stern Drive |
Fuel Injector | Yes |
Carburetor | No |
Carburetion Type | Fuel Injected |
Tachometer | Standard |
Speedometer | Standard |
Fuel Level Warning Type | Gauge |
Trim Indicator | Standard |
Depth Indicator | Standard |
Propulsion Type | Propeller |
Stern Drive Brand | Bravo Three® |
Trim System Type | Power |
Twin Propeller | Yes |
Counter Rotating Capable | Yes |
Steering Assist System | Yes |
Outboard Steering Control | Remote |
Auto Pilot | No |
Hull Material | Fiberglass |
Boarding Step | Standard |
Sky Light | Standard |
Swim Platform | Standard |
Boarding Ladder | Standard |
Front Curtain | No |
Side Curtains | No |
Aft Curtain | No |
Aft Sunshade | No |
Camper Back | No |
Bow Cover | No |
Bridge Enclosure | No |
Bilge System Type | Automatic Siphon / Electric Pump |
Bilge Pump Alarm | Yes |
Engine Compartment Blowers | Standard |
Changing Room | Standard |
Helm Seating Configuration | Chair |
Number Of Helm Seats | 1 |
Helm Roof Type | Open Top |
Pilot House Door | No |
Cockpit Flooring Type | Fiberglass |
Number Of Cockpit Chairs | 2 |
Number Of Barstools | 0 |
Number Of Cockpit Sofas | 1 |
Number Of Open Bow Seats | 5 |
Number Of Sofas | 0 |
Number Of Chairs | 0 |
Number Of Convertible Beds | 0 |
Number Of Full Beds | 0 |
Number Of Single Beds | 0 |
Total Sleeping Capacity | 0 |
Number of Queen Beds | 0 |
Galley Table Configuration | No Galley Table |
Convection | No |
Number Of Bridge Seats | 0 |
Bridge Carpeting | No |
Bridge Table | No |
Number Of Bridge Chairs | 0 |
Number Of Bridge Sofas | 0 |
Sun Pad | Standard |
Head Type | Cassette |
Full Head | Yes |
Head Location | Topside |
Number of Fishing Pedestal Chairs | 0 |
Total Baitwell Capacity (gal/l) | 0 / 0 |
Baitwell Pump | No |
Total Fishbox Capacity (gal/l) | 0 / 0 |
Fishbox Pump | No |
Cockpit Heater | No |
Cabin Heater | No |
Bridge Heater | No |
Trailer | Standard |
Walk-Through Windshield | Yes |
Satellite | No |
Bluetooth® Audio | Yes |
Mobile App Instrumentation | No |
Wi-Fi Capable | No |
Tow Pylon | Standard |
Underwater Lighting | Standard |
Ski / Wakeboard Storage | Standard |
