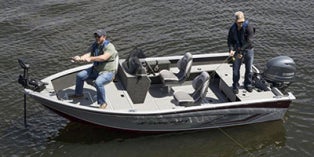

2020 Starcraft Stealth 166 SC

TBA

Body Style: Fishing
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Stealth Series
  Generic Type (Primary)	Fishing
  Manufacturer Country	USA
  Major Revision Year	2016
  Revision Status	Carryover
  Competitor Code	BOA20FBA0000
  Introduction Year	2016
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Smoker Craft, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	190 / 4800 / 15.83 / 4.8
  Length (ft/ft)	15
  Length (ft/in)	10
  Beam (in/m)	85 / 2.2
  Deadrise (deg)	10
  Transom Height (mm/in)	508 / 20
  Dry Weight (lbs/kg)	965 / 437.7
  Fuel Capacity (gal/l)	11 / 41.6
  Number of Passengers	6
  Weight Capacity (lbs/kg)	900 / 408.2
  Max Recommended Horsepower (bhp/kW)	90 / 67.2
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	In-line
  Cylinders	4
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	90 / 67
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	4
  Valve Configuration	SOHC
  Bore (mm/in)	90 / 3.5
  Stroke (mm/in)	81 / 3.2
  Displacement (l)	2.1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	90ELPT
  Engine Manufacturer	Mercury
  Engine Trim	90HP ELPT
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	359 / 163
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	2.07:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Aluminum
  Water Type	Raw Water
  Front Curtain	No
  Side Curtains	No
  Aft Curtain	No
  Aft Sunshade	No
  Camper Back	No
  Bow Cover	No

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Pilot House Door	No
  Cockpit Flooring Type	Vinyl
  Cockpit Table	No
  Number Of Cockpit Chairs	1
  Number Of Open Bow Seats	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Full Head	No

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	2
  Total Fishbox Capacity (gal/l)	25 / 106
  Fishbox Pump	Yes

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  No
