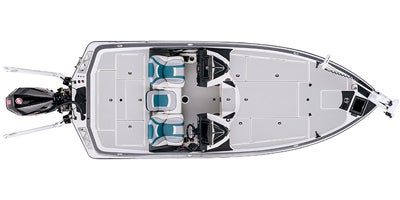

2019 Ranger Intracoastal Z521LI

$72,095

Body Style: Bass
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Intracoastal
  Generic Type (Primary)	Bass
  Manufacturer Country	USA
  Major Revision Year	2018
  Revision Status	Carryover
  Competitor Code	BOA19BSG0000
  Introduction Year	2018
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Ranger Boats

• Technical Specifications

  Length (in/mm/ft/m)	259 / 6600 / 21.58 / 6.6
  Length (ft/ft)	21
  Length (ft/in)	7
  Beam (in/m)	97 / 2.5
  Transom Height (mm/in)	508 / 20
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	1925 / 873.2
  Fuel Capacity (gal/l)	53 / 200.6
  Number of Passengers	5
  Weight Capacity (lbs/kg)	1700 / 771.1
  Min Recommended Horsepower (bhp/kW)	250 / 186.6
  Max Recommended Horsepower (bhp/kW)	250 / 186.5
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Pro XS®
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	250 / 186
  Cooling	Water (Open Loop)
  Valves	32
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	92 / 3.6
  Stroke (mm/in)	86 / 3.4
  Displacement (l)	4.6
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	250L
  Engine Manufacturer	Mercury
  Engine Trim	250L
  Full Throttle RPM Range Low	5600
  Full Throttle RPM Range High	6200
  Engine Dry Weight (lbs/Kg)	505 / 229
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.75:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Hot Water	No
  Boarding Ladder	Standard
  Front Curtain	No
  Side Curtains	No
  Aft Curtain	No
  Aft Sunshade	No
  Camper Back	No
  Bow Cover	No
  Bridge Enclosure	No

• Convenience

  Bilge System Type

  Automatic Siphon / Electric Pump

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	No
  Number Of Cockpit Chairs	2
  Number Of Cockpit Sofas	0
  Number Of Open Bow Seats	0
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Full Head	No

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	2
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	31 / 131.4
  Fishbox Pump	Yes
  Trolling Motor Brand	Minn Kota®

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  No
