2016 Monterey FS 224

2016 Monterey FS 224
$47,577
Body Style: Bowrider
Insurance: Get a free quote

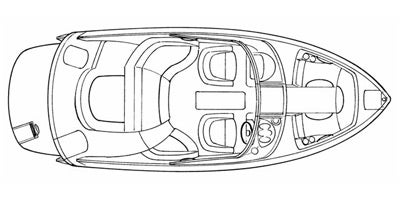

Build & Price View Floorplan

Boat Specifications

  • Identification
    Family Name FS
    Generic Type (Primary) Bowrider
    Manufacturer Country USA
    Major Revision Year 2011
    Revision Status Carryover
    Competitor Code BOA16BRH0000
    Introduction Year 2011
    IsEmbargoed No
    IsWIP No
    IsPrelim No
    IsCurrent No
    Parent Company Monterey Boats
  • Technical Specifications
    Length (in/mm/ft/m) 273 / 6900 / 22.75 / 6.9
    Length (ft/ft) 22
    Length (ft/in) 9
    Beam (in/m) 102 / 2.6
    Draft (Drive Up) (in/mm) 23 / 584
    Draft (Drive Down) (in/mm) 36 / 914
    Deadrise (deg) 19
    Number Of Pontoons 0
    Dry Weight (lbs/kg) 3500 / 1588
    Fuel Capacity (gal/l) 55 / 208.2
    Number of Passengers 11
    Weight Capacity (lbs/kg) 1900 / 862
    Min Recommended Horsepower (bhp/kW) 200 / 149.2
    Max Recommended Horsepower (bhp/kW) 300 / 223.9
    Total Gray Water Tank Capacity (gal/l) 0 / 0
    Total Black Water Tank Capacity (gal/l) 0 / 0
    Number Of Water Ballast Tanks 0
    Total Water Ballast Tank Capacity (gal/l) 0 / 0
  • Engine
    Engine Brand Name MerCruiser®
    Engine Type V6
    Cylinders 6
    Engine Stroke 4-Stroke
    Horsepower (bhp/kW) 220 / 164
    Cooling Water (Open Loop)
    Valve Configuration OHV
    Bore (mm/in) 101 / 4
    Stroke (mm/in) 88 / 3.48
    Displacement (l) 4.3
    Compression Ratio 9.4:1
    Starter Electric
    Fuel Requirements Regular
    Fuel Type Gas
    Turbocharged No
    Supercharged No
    Engine Manufacturer Mercury
    Engine Trim 4.3L MPI ECT Alpha® One 220HP
    Full Throttle RPM Range Low 4400
    Full Throttle RPM Range High 4800
    Engine Dry Weight (lbs/Kg) 775 / 352
    Salt Water Capable Yes
    Engine Alert System Type Visual / Audible
    Emergency RPM Reduction Yes
    Number Of Engines 1
    Engine Configuration Stern Drive
    Fuel Injector Yes
    Carburetor No
    Carburetion Type Fuel Injected
  • Instrumentation
    Tachometer Standard
    Speedometer Standard
    Fuel Level Warning Type Gauge
    Trim Indicator Standard
  • Drive Line
    Propulsion Type Propeller
    Stern Drive Brand Alpha
    Trim System Type Power
    Twin Propeller No
    Counter Rotating Capable Yes
  • Steering
    Steering Assist System Yes
    Outboard Steering Control Remote
    Auto Pilot No
  • Exterior
    Hull Material Fiberglass
    Swim Platform Standard
    Boarding Ladder Standard
    Front Curtain No
    Side Curtains No
    Aft Curtain No
    Aft Sunshade No
    Camper Back No
    Bow Cover No
    Bridge Enclosure No
  • Convenience
    Anchor Standard
    Bilge System Type Automatic Siphon / Electric Pump
    Engine Compartment Blowers Standard
  • Topside / Cabin
    Helm Seating Configuration Chair
    Number Of Helm Seats 1
    Helm Roof Type Bimini Top
    Pilot House Door No
    Cockpit Flooring Type Fiberglass
    Number Of Cockpit Chairs 2
    Number Of Cockpit Sofas 1
    Number Of Open Bow Seats 3
    Number Of Sofas 0
    Number Of Chairs 0
    Number Of Convertible Beds 0
    Number Of Full Beds 0
    Number Of Single Beds 0
    Total Sleeping Capacity 0
    Number of Queen Beds 0
    Galley Table Configuration No Galley Table
    Convection No
    Number Of Bridge Seats 0
    Bridge Carpeting No
    Bridge Table No
    Number Of Bridge Chairs 0
    Number Of Bridge Sofas 0
    Sun Pad Standard
    Full Head No
  • Fishing
    Number of Fishing Pedestal Chairs 0
    Total Baitwell Capacity (gal/l) 0 / 0
    Baitwell Pump No
    Total Fishbox Capacity (gal/l) 0 / 0
    Fishbox Pump No
  • Air Conditioning & Heater
    Cockpit Heater No
    Cabin Heater No
    Bridge Heater No
  • Towing & Hauling
    Trailer Standard
  • Glass
    Walk-Through Windshield Yes
  • Audio & Communication
    Brand Name Fusion®
    Satellite No
  • Ski / Wakeboard
    Tow Pylon Standard
  • Storage
    Ski / Wakeboard Storage Standard
