2016 MasterCraft X Series X20

$92,860

Body Style: Ski / Wakeboard
Insurance: Get a free quote

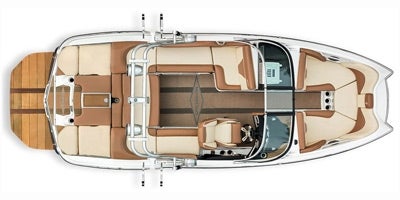

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	X-Series
  Generic Type (Primary)	Ski / Wakeboard
  Manufacturer Country	USA
  Major Revision Year	2015
  Revision Status	Carryover
  Competitor Code	BOA16SWF0000
  Introduction Year	2015
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	MasterCraft Boat Company, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	240 / 6100 / 20 / 6.1
  Length (ft/ft)	20
  Length (ft/in)	0
  Beam (in/m)	98 / 2.5
  Draft (Drive Up) (in/mm)	29 / 736.6
  Draft (Drive Down) (in/mm)	29 / 736.6
  Dry Weight (lbs/kg)	4800 / 2177
  Fuel Capacity (gal/l)	47 / 178
  Number of Passengers	12
  Weight Capacity (lbs/kg)	1595 / 724
  Min Recommended Horsepower (bhp/kW)	320 / 238.8
  Max Recommended Horsepower (bhp/kW)	522 / 389.5
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	3

• Engine

  Engine Brand Name	MV8
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	320 / 239
  Horsepower RPM	5000
  Torque (Ft Lbs/Nm)	365 / 494.9
  Torque RPM	4200
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	101.6 / 4
  Stroke (mm/in)	88.39 / 3.48
  Displacement (l)	5.73
  Compression Ratio	9:4:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	MV85.7VDRIVE
  Engine Manufacturer	Ilmor
  Engine Trim	V-Drive
  Salt Water Capable	No
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Inboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS	Standard
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1:56
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	Yes

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Swim Platform	Standard

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Engine Compartment Blowers	Standard
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Cockpit Table	No
  Number Of Cockpit Sofas	1
  Number Of Open Bow Seats	3
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Full Head	No

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name

  Fusion®

• Ski / Wakeboard

  Tow Pylon	Standard
  Wakeboard Tower	Standard
  Wakeboard Tower Rack	Standard

• Fire Suppression System

  Fire Suppression System

  Standard

• Storage

  Ski / Wakeboard Storage

  Standard
