2017 Malibu Boats Wakesetter 21 VLX

TBA

Body Style: Ski / Wakeboard
Insurance: Get a free quote

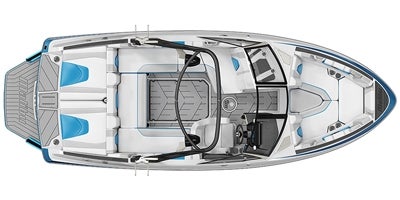

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Wakesetter
  Generic Type (Primary)	Ski / Wakeboard
  Manufacturer Country	USA
  Major Revision Year	2017
  Revision Status	New
  Competitor Code	BOA17SWG0000
  Introduction Year	2017
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Malibu Boats

• Technical Specifications

  Length (in/mm/ft/m)	252 / 6400 / 21 / 6.4
  Length (ft/ft)	21
  Length (ft/in)	0
  Beam (in/m)	98 / 2.5
  Draft (Drive Up) (in/mm)	27 / 685.8
  Draft (Drive Down) (in/mm)	27 / 685.8
  Dry Weight (lbs/kg)	4000 / 1814
  Fuel Capacity (gal/l)	48 / 182
  Number of Passengers	13
  Weight Capacity (lbs/kg)	1833 / 831
  Performance	Standard
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	3
  Total Water Ballast Tank Capacity (gal/l)	90 / 340.2

• Engine

  Engine Brand Name	Monsoon
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Torque (Ft Lbs/Nm)	410 / 555.9
  Cooling	Liquid
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	SOHC
  Bore (mm/in)	102 / 4.02
  Stroke (mm/in)	95 / 3.74
  Displacement (l)	6.2
  Compression Ratio	9.8:1
  Starter	Electric
  Fuel Requirements	Mid Grade
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	400
  Engine Manufacturer	Indmar
  Engine Trim	Monsoon 410
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	5400
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Inboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	1.76:1
  Propeller	Standard

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Swim Platform	Standard
  Front Curtain	No
  Side Curtains	No
  Aft Curtain	No
  Aft Sunshade	No
  Camper Back	No
  Bow Cover	No
  Bridge Enclosure	No

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Bilge Pump Alarm	Yes
  Engine Compartment Blowers	Standard
  Wake Control	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Number Of Cockpit Chairs	0
  Number Of Cockpit Sofas	1
  Number Of Open Bow Seats	3
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Ski / Wakeboard

  Tow Pylon	Standard
  Wakeboard Tower	Standard
  Wakeboard Tower Rack	Standard
  Wakeboard Tower Lights	Standard

• Storage

  Ski / Wakeboard Storage

  Standard
