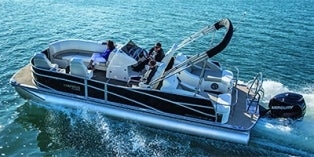

2015 Harris Grand Mariner SL 230 DLDH

$45,580

Body Style: Pontoon
Insurance: Get a free quote

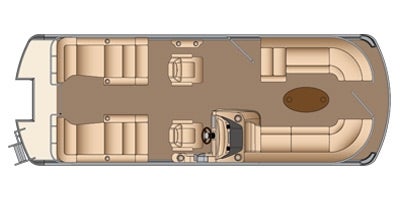

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Grand Mariner
  Generic Type (Primary)	Pontoon
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA15PNL0000
  Introduction Year	2012
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Brunswick Corporation

• Technical Specifications

  Length (in/mm/ft/m)	301 / 7600 / 25.08 / 7.6
  Length (ft/ft)	25
  Length (ft/in)	1
  Beam (in/m)	102 / 2.6
  Transom Height (in)	20
  Pontoon Length (in/m)	276 / 7
  Pontoon Diameter (in/mm)	25 / 0.64
  Number Of Pontoons	2
  Dry Weight (lbs/kg)	4225 / 1916.5
  Fuel Capacity (gal/l)	30 / 113.6
  Number of Passengers	10
  Weight Capacity (lbs/kg)	2825 / 1281.4
  Min Recommended Horsepower (bhp/kW)	90 / 67.2
  Max Recommended Horsepower (bhp/kW)	200 / 149.2
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	In-line
  Cylinders	4
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	90 / 67
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	82 / 3.23
  Stroke (mm/in)	82 / 3.23
  Displacement (l)	1.7
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	90ELPT
  Engine Manufacturer	Mercury
  Engine Trim	90HP ELPT
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	399 / 181
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Trim Indicator	Standard
  Depth Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	2.33:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Aluminum
  Hot Water	No
  Swim Platform	Standard
  Boarding Ladder	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Bimini Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Cockpit Table	Yes
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	2
  Number Of Open Bow Seats	5
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Glass

  Walk-Through Windshield

  No

• Audio & Communication

  Brand Name	Polk
  Satellite	No

• Storage

  Storage Cover

  Standard

Model History

Similar to 2015 Harris Grand Mariner SL 230 DLDH

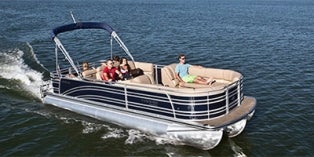

2015 Harris Solstice 240 CWDH

MSRP: $32,320

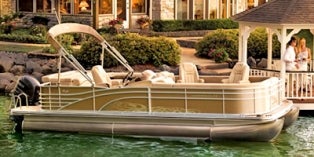

2015 Bennington R Series 25 2574 RFS
