2018 Formula FX CBR 330

$389,500

Body Style: Cuddy Cabin
Insurance: Get a free quote

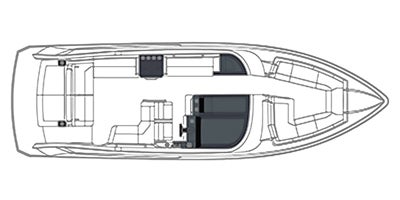

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	FX
  Generic Type (Primary)	Cuddy Cabin
  Manufacturer Country	USA
  Major Revision Year	2015
  Revision Status	Carryover
  Competitor Code	BOA18CDT0000
  Introduction Year	2015
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Thunderbird Products

• Technical Specifications

  Length (in/mm/ft/m)	396 / 10100 / 33 / 10.1
  Length (ft/ft)	33
  Length (ft/in)	0
  Beam (in/m)	123 / 3.1
  Bridge Clearance (in/m)	78 / 2
  Draft (Drive Down) (in/mm)	35 / 890
  Deadrise (deg)	21
  Cabin Headroom (in/m)	72 / 1.6
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	12500 / 5670
  Fuel Capacity (gal/l)	151 / 571.6
  Number of Passengers	Yacht Certified
  Min Recommended Horsepower (bhp/kW)	760 / 567.1
  Max Recommended Horsepower (bhp/kW)	900 / 671.6
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	25 / 94.6
  Total Black Water Tank Capacity (gal/l)	26 / 98.4
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	MV8
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	382 / 283
  Horsepower RPM	5200
  Torque (Ft Lbs/Nm)	401 / 543.7
  Torque RPM	4400
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	101.6 / 4
  Stroke (mm/in)	92 / 3.62
  Displacement (l)	5.98
  Compression Ratio	9:6:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	MV860LOD
  Engine Manufacturer	Ilmor
  Engine Trim	OPS 380 One Drive
  Engine Dry Weight (lbs/Kg)	871 / 396
  Salt Water Capable	No
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS Brand	Garmin®
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	Yes

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Hot Water	No
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Bilge Pump Alarm	Yes
  Engine Compartment Blowers	Standard

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	2
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Cockpit Table	Yes
  Number Of Cockpit Chairs	0
  Number Of Cockpit Sofas	3
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	7
  Cabin	Standard
  Number Of Sofas	1
  Number Of Chairs	0
  Number Of Convertible Beds	1
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	2
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Vacuum Flush
  Full Head	Yes
  Head Location	Topside

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name	Clarion
  Satellite	Yes
  CD Player	Standard

• Storage

  Storage Cover	Standard
  Ski / Wakeboard Storage	Standard

• Fire Suppression System

  Fire Suppression System

  Standard
