2014 EdgeWater Inshore 190IS

2014 EdgeWater Inshore 190IS
TBA
Body Style: Center Console
Insurance: Get a free quote

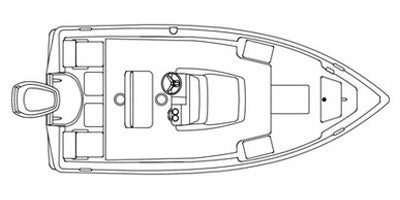

Build & Price View Floorplan

Boat Specifications

  • Identification
    Family Name Inshore
    Generic Type (Primary) Center Console
    Manufacturer Country USA
    Revision Status Carryover
    Competitor Code BOA14CCE0000
    IsEmbargoed No
    IsWIP No
    IsPrelim No
    IsCurrent No
    Parent Company North Technologies Group
  • Technical Specifications
    Length (in/mm/ft/m) 234 / 5900 / 19.5 / 5.9
    Length (ft/ft) 19
    Length (ft/in) 6
    Beam (in/m) 102 / 2.6
    Bridge Clearance (in/m) 62 / 1.6
    Draft (Drive Up) (in/mm) 13 / 330.2
    Transom Height (mm/in) 635 / 25
    Number Of Pontoons 0
    Dry Weight (lbs/kg) 2000 / 908
    Fuel Capacity (gal/l) 42 / 159
    Number of Passengers 6
    Weight Capacity (lbs/kg) 1900 / 862
    Min Recommended Horsepower (bhp/kW) 115 / 85.8
    Max Recommended Horsepower (bhp/kW) 150 / 112
    Number Of Fresh Water Holding Tanks 0
    Total Fresh Water Tank Capacity (gal/l) 0 / 0
    Total Gray Water Tank Capacity (gal/l) 0 / 0
    Total Black Water Tank Capacity (gal/l) 0 / 0
    Number Of Water Ballast Tanks 0
    Total Water Ballast Tank Capacity (gal/l) 0 / 0
  • Engine
    Engine Brand Name Fourstroke
    Engine Type In-line
    Cylinders 4
    Engine Stroke 4-Stroke
    Horsepower (bhp/kW) 115 / 85.8
    Horsepower RPM 5500
    Cooling Water (Open Loop)
    Valves 16
    Valves Per Cylinder 4
    Valve Configuration DOHC
    Bore (mm/in) 79 / 3.11
    Stroke (mm/in) 88.8 / 3.49
    Displacement (l) 1.7
    Compression Ratio 9.7:1
    Starter Electric
    Fuel Requirements Regular
    Fuel Type Gas
    Turbocharged No
    Supercharged No
    Engine Model Code F115
    Engine Manufacturer Yamaha
    Engine Trim F115XA
    Full Throttle RPM Range Low 5000
    Full Throttle RPM Range High 6000
    Engine Dry Weight (lbs/Kg) 408 / 185
    Salt Water Capable Yes
    Engine Alert System Type Visual / Audible
    Emergency RPM Reduction Yes
    Number Of Engines 1
    Engine Configuration Outboard
    Fuel Injector Yes
    Carburetor No
    Carburetion Type Fuel Injected
  • Instrumentation
    Tachometer Standard
    Speedometer Standard
    Fuel Level Warning Type Gauge
    Compass Standard
    Trim Indicator Standard
  • Drive Line
    Propulsion Type Propeller
    Gear Ratio (s) 2.15:1
    Trim System Type Power
    Twin Propeller No
    Counter Rotating Capable No
  • Steering
    Steering Assist System Yes
    Outboard Steering Control Remote
    Auto Pilot No
  • Exterior
    Hull Material Fiberglass
    Boarding Step Standard
    Hot Water No
    Water Type Raw Water
  • Convenience
    Bilge System Type Automatic Siphon / Electric Pump
  • Topside / Cabin
    Helm Seating Configuration Bench
    Number Of Helm Seats 2
    Helm Roof Type Open Top
    Pilot House Door No
    Cockpit Flooring Type Fiberglass
    Cockpit Table No
    Number Of Cockpit Chairs 3
    Number Of Cockpit Sofas 0
    Number Of Open Bow Seats 0
    Number Of Sofas 0
    Number Of Chairs 0
    Number Of Convertible Beds 0
    Number Of Full Beds 0
    Number Of Single Beds 0
    Total Sleeping Capacity 0
    Number of Queen Beds 0
    Galley Table Configuration No Galley Table
    Number Of Bridge Seats 0
    Bridge Carpeting No
    Bridge Table No
    Number Of Bridge Chairs 0
    Number Of Bridge Sofas 0
    Full Head No
  • Fishing
    Fishing Rod Holders Standard
    Fishbox Standard
  • Air Conditioning & Heater
    Cockpit Heater No
    Cabin Heater No
    Bridge Heater No
  • Towing & Hauling
    Trailer Standard
  • Glass
    Walk-Through Windshield No
