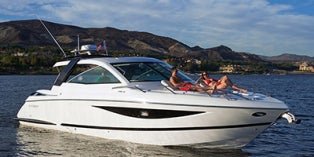

2020 Cobalt A Series A40 Coupe

$794,855

Body Style: Cruiser
Insurance: Get a free quote

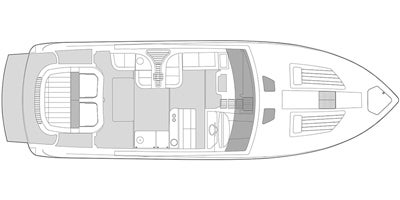

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	A Series
  Generic Type (Primary)	Cruiser
  Manufacturer Country	USA
  Major Revision Year	2016
  Revision Status	Carryover
  Competitor Code	BOA20CRT0000
  Introduction Year	2016
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Cobalt Boats, LLC

• Technical Specifications

  Length (in/mm/ft/m)	474 / 12000 / 39.5 / 12
  Length (ft/ft)	39
  Length (ft/in)	6
  Beam (in/m)	144 / 3.7
  Bridge Clearance (in/m)	165 / 4.2
  Draft (Drive Up) (in/mm)	33 / 840
  Draft (Drive Down) (in/mm)	48 / 1220
  Deadrise (deg)	20
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	19926 / 9038
  Fuel Capacity (gal/l)	248 / 938.8
  Number of Passengers	Yacht Certified
  Min Recommended Horsepower (bhp/kW)	800 / 597
  Max Recommended Horsepower (bhp/kW)	800 / 597
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	50 / 189
  Total Black Water Tank Capacity (gal/l)	28 / 106
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Penta
  Engine Type	In-line
  Cylinders	6
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	400 / 294
  Horsepower RPM	3500
  Cooling	Water (Open Loop)
  Valves	24
  Valves Per Cylinder	4
  Valve Configuration	DOHC
  Bore (mm/in)	103 / 4.06
  Stroke (mm/in)	110 / 4.33
  Displacement (l)	5.5
  Compression Ratio	17.5:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Diesel
  Turbocharged	Yes
  Supercharged	No
  Engine Model Code	D6-400A
  Engine Manufacturer	Volvo Penta
  Engine Trim	D6-400 DP
  Full Throttle RPM Range High	6000
  Engine Dry Weight (lbs/Kg)	1731 / 785
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard
  Depth Indicator	Standard
  Water Temperature Gauge	Standard
  Air Temperature Gauge	Standard

• Drive Line

  Propulsion Type	Propeller
  Stern Drive Brand	DPS
  Gear Ratio (s)	1.59:1
  Trim System Type	Power
  Twin Propeller	Yes
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System

  Yes

• Exterior

  Hull Material	Fiberglass
  Boarding Step	Standard
  Sky Light	Standard
  Swim Platform	Standard
  Boarding Ladder	Standard

• Convenience

  Anchor	Standard
  Bilge System Type	Automatic Siphon / Electric Pump
  Bilge Pump Alarm	Yes
  Power Windlass	Standard
  Engine Compartment Blowers	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Full Hard Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Number Of Cockpit Chairs	0
  Number Of Cockpit Sofas	2
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	2
  Cabin	Standard
  Number Of Sofas	2
  Number Of Chairs	0
  Number Of Convertible Beds	2
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	4
  Number of Queen Beds	0
  Galley Table Configuration	Pedestal
  Convection	No
  Galley Refrigerator	Standard
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Vacuum Flush
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Air Conditioning & Heater

  Air Conditioning	Standard
  Heater	Standard

• Towing & Hauling

  Trailer

  Standard

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Brand Name

  Rockford Fosgate®

• Ski / Wakeboard

  Tow Pylon

  Standard

• Electrical

  Generator Type

  Gas

• Fire Suppression System

  Fire Suppression System

  Standard
