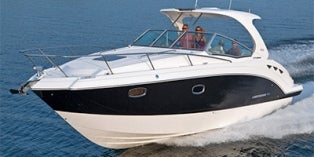

2012 Chaparral Signature 330

TBA

Body Style: Cruiser
Insurance: Get a free quote

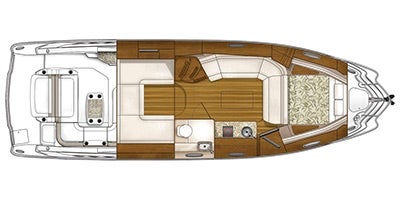

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	Signature
  Generic Type (Primary)	Cruiser
  Manufacturer Country	USA
  Revision Status	Carryover
  Competitor Code	BOA12CRT0000
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Chaparral Boats, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	402 / 10200 / 33.5 / 10.2
  Length (ft/ft)	33
  Length (ft/in)	6
  Beam (in/m)	126 / 3.2
  Bridge Clearance (in/m)	128 / 3.3
  Draft (Drive Up) (in/mm)	26 / 660
  Draft (Drive Down) (in/mm)	41 / 1040
  Deadrise (deg)	18
  Cabin Headroom (in/m)	80.5 / 2
  Dry Weight (lbs/kg)	12900 / 5851
  Fuel Capacity (gal/l)	175 / 662
  Number of Passengers	Yacht Certified
  Min Recommended Horsepower (bhp/kW)	400 / 298.5
  Max Recommended Horsepower (bhp/kW)	640 / 477.6
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	50 / 189
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	MerCruiser®
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	260 / 191
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	95 / 3.73
  Stroke (mm/in)	88 / 3.48
  Displacement (l)	5
  Compression Ratio	9.4:1
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Manufacturer	Mercury
  Engine Trim	5.0L MPI ECT Bravo Three®
  Full Throttle RPM Range Low	4500
  Full Throttle RPM Range High	5000
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	2
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard
  Depth Indicator	Standard

• Drive Line

  Propulsion Type	Propeller
  Stern Drive Brand	Bravo Three®
  Trim System Type	Power
  Twin Propeller	Yes
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Boarding Step	Standard
  Sky Light	Standard
  Exterior Shower	Standard
  Swim Platform	Standard
  Boarding Ladder	Standard
  Radar Arch	Standard
  Front Curtain	Yes
  Side Curtains	Yes
  Aft Curtain	Yes
  Aft Sunshade	No
  Camper Back	Yes
  Bow Cover	No
  Bridge Enclosure	No

• Convenience

  Bilge System Type	Automatic Siphon / Electric Pump
  Bilge Pump Alarm	Yes
  Engine Compartment Blowers	Standard

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	1
  Helm Roof Type	Full Hard Top
  Pilot House Door	No
  Cockpit Flooring Type	Carpeted
  Cockpit Table	Yes
  Number Of Cockpit Chairs	0
  Number Of Cockpit Sofas	1
  Cockpit Wet Bar	Standard
  Number Of Open Bow Seats	0
  Cabin	Standard
  Number Of Sofas	3
  Number Of Chairs	0
  Number Of Convertible Beds	3
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	6
  Number of Queen Beds	0
  Galley Table Configuration	Pedestal
  Galley Stove	Standard
  Convection	No
  Galley Refrigerator	Standard
  Number Of Bridge Seats	0
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Vacuum Flush
  Full Head	Yes
  Head Location	Cabin
  Shower	Standard

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Satellite	Yes
  CD Player	Standard
  DVD Player	Standard
  Television	Standard

• Fire Suppression System

  Fire Suppression System

  Standard
