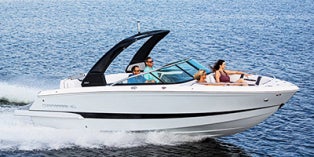

2020 Chaparral SSX 257

$101,777

Body Style: Bowrider
Insurance: Get a free quote

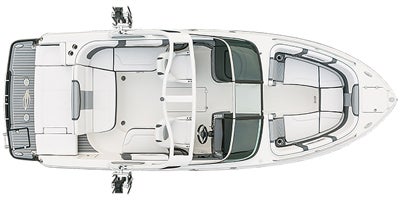

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	SSX
  Generic Type (Primary)	Bowrider
  Manufacturer Country	USA
  Major Revision Year	2013
  Revision Status	Carryover
  Competitor Code	BOA20BRK0000
  Introduction Year	2013
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	Yes
  Parent Company	Chaparral Boats, Inc.

• Technical Specifications

  Length (in/mm/ft/m)	300 / 7600 / 25 / 7.6
  Length (ft/ft)	25
  Length (ft/in)	0
  Beam (in/m)	102 / 2.6
  Bridge Clearance (in/m)	64 / 1.6
  Draft (Drive Up) (in/mm)	23 / 584.2
  Draft (Drive Down) (in/mm)	35 / 889
  Deadrise (deg)	22
  Number Of Pontoons	0
  Dry Weight (lbs/kg)	4700 / 2132
  Fuel Capacity (gal/l)	65 / 246
  Number of Passengers	14
  Weight Capacity (lbs/kg)	2006 / 910
  Min Recommended Horsepower (bhp/kW)	300 / 261.2
  Max Recommended Horsepower (bhp/kW)	380 / 283
  Number Of Fresh Water Holding Tanks	1
  Total Fresh Water Tank Capacity (gal/l)	10 / 38
  Total Gray Water Tank Capacity (gal/l)	3.8 / 14
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	MerCruiser®
  Engine Type	V8
  Cylinders	8
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	300 / 224
  Cooling	Water (Open Loop)
  Valves	16
  Valves Per Cylinder	2
  Valve Configuration	OHV
  Bore (mm/in)	101.6 / 4
  Stroke (mm/in)	95.3 / 3.75
  Displacement (l)	6.2
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Manufacturer	Mercury
  Engine Trim	6.2L 300 ECT Bravo Three®
  Full Throttle RPM Range Low	5000
  Full Throttle RPM Range High	5400
  Engine Dry Weight (lbs/Kg)	862 / 391
  Salt Water Capable	Yes
  Engine Alert System Type	Visual / Audible
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Stern Drive
  Fuel Injector	Yes
  Carburetor	No
  Carburetion Type	Fuel Injected

• Instrumentation

  Tachometer	Standard
  Speedometer	Standard
  GPS Brand	Simrad™
  Fuel Level Warning Type	Gauge
  Compass	Standard
  Trim Indicator	Standard
  Depth Indicator	Standard
  Fish Finder	Standard

• Drive Line

  Propulsion Type	Propeller
  Stern Drive Brand	Bravo Three®
  Trim System Type	Power
  Twin Propeller	Yes
  Counter Rotating Capable	Yes

• Steering

  Steering Assist System	Yes
  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Fiberglass
  Swim Platform	Standard
  Boarding Ladder	Standard
  Front Curtain	No
  Side Curtains	No
  Aft Curtain	No
  Aft Sunshade	No
  Camper Back	No
  Bow Cover	No
  Bridge Enclosure	No

• Convenience

  Bilge System Type	Automatic Siphon
  Bilge Pump Alarm	Yes
  Engine Compartment Blowers	Standard

• Topside / Cabin

  Helm Seating Configuration	Chair
  Number Of Helm Seats	1
  Helm Roof Type	Bimini Top
  Pilot House Door	No
  Cockpit Flooring Type	Fiberglass
  Number Of Cockpit Chairs	1
  Number Of Cockpit Sofas	2
  Number Of Open Bow Seats	5
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Sun Pad	Standard
  Head Type	Cassette
  Full Head	Yes
  Head Location	Topside

• Fishing

  Number of Fishing Pedestal Chairs	0
  Total Baitwell Capacity (gal/l)	0 / 0
  Baitwell Pump	No
  Total Fishbox Capacity (gal/l)	0 / 0
  Fishbox Pump	No

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Glass

  Walk-Through Windshield

  Yes

• Audio & Communication

  Radio

  Standard

• Storage

  Storage Cover	Standard
  Ski / Wakeboard Storage	Standard
