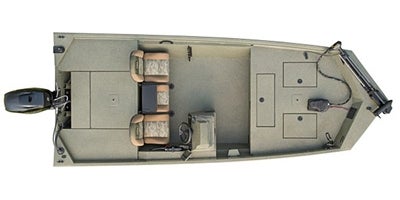

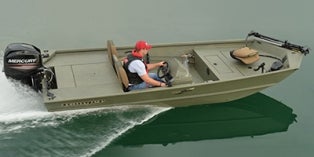

2017 Ranger MPV™ 1760

$13,695

Body Style: Bass
Insurance: Get a free quote

Build & Price View Floorplan

Boat Specifications

• Identification

  Family Name	MPV
  Generic Type (Primary)	Bass
  Manufacturer Country	USA
  Major Revision Year	2014
  Revision Status	Carryover
  Competitor Code	BOA17BSB0000
  Introduction Year	2014
  IsEmbargoed	No
  IsWIP	No
  IsPrelim	No
  IsCurrent	No
  Parent Company	Ranger Boats

• Technical Specifications

  Length (in/mm/ft/m)	210 / 5300 / 17.5 / 5.3
  Length (ft/ft)	17
  Length (ft/in)	6
  Beam (in/m)	86 / 2.2
  Transom Height (mm/in)	508 / 20
  Dry Weight (lbs/kg)	925 / 419.6
  Fuel Capacity (gal/l)	21 / 79.5
  Number of Passengers	5
  Min Recommended Horsepower (bhp/kW)	25 / 18.7
  Max Recommended Horsepower (bhp/kW)	75 / 56
  Number Of Fresh Water Holding Tanks	0
  Total Fresh Water Tank Capacity (gal/l)	0 / 0
  Total Gray Water Tank Capacity (gal/l)	0 / 0
  Total Black Water Tank Capacity (gal/l)	0 / 0
  Number Of Water Ballast Tanks	0
  Total Water Ballast Tank Capacity (gal/l)	0 / 0

• Engine

  Engine Brand Name	Fourstroke
  Engine Type	In-line
  Cylinders	2
  Engine Stroke	4-Stroke
  Horsepower (bhp/kW)	20 / 14.7
  Cooling	Water (Open Loop)
  Valves	4
  Valves Per Cylinder	2
  Valve Configuration	SOHC
  Bore (mm/in)	61 / 2.4
  Stroke (mm/in)	60 / 2.36
  Displacement (l)	0.4
  Starter	Electric
  Fuel Requirements	Regular
  Fuel Type	Gas
  Turbocharged	No
  Supercharged	No
  Engine Model Code	20ELPT
  Engine Manufacturer	Mercury
  Engine Trim	20HP ELPT
  Full Throttle RPM Range Low	5400
  Full Throttle RPM Range High	6100
  Engine Dry Weight (lbs/Kg)	115 / 52
  Salt Water Capable	Yes
  Engine Alert System Type	Visual
  Emergency RPM Reduction	Yes
  Number Of Engines	1
  Engine Configuration	Outboard
  Fuel Injector	No
  Carburetor	Yes
  Carburetion Type	Carburetor

• Instrumentation

  Tachometer	Standard
  Fuel Level Warning Type	Gauge

• Drive Line

  Propulsion Type	Propeller
  Gear Ratio (s)	2.15:1
  Trim System Type	Power
  Twin Propeller	No
  Counter Rotating Capable	No

• Steering

  Outboard Steering Control	Remote
  Auto Pilot	No

• Exterior

  Hull Material	Aluminum
  Hot Water	No
  Front Curtain	No
  Side Curtains	No
  Aft Curtain	No
  Aft Sunshade	No
  Camper Back	No
  Bow Cover	No
  Bridge Enclosure	No

• Convenience

  Bilge System Type

  Electric Pump

• Topside / Cabin

  Helm Seating Configuration	Bench
  Number Of Helm Seats	1
  Helm Roof Type	Open Top
  Pilot House Door	No
  Cockpit Flooring Type	Aluminum
  Cockpit Table	No
  Number Of Cockpit Chairs	2
  Number Of Cockpit Sofas	0
  Number Of Open Bow Seats	0
  Number Of Sofas	0
  Number Of Chairs	0
  Number Of Convertible Beds	0
  Number Of Full Beds	0
  Number Of Single Beds	0
  Total Sleeping Capacity	0
  Number of Queen Beds	0
  Galley Table Configuration	No Galley Table
  Convection	No
  Number Of Bridge Seats	0
  Bridge Carpeting	No
  Bridge Table	No
  Number Of Bridge Chairs	0
  Number Of Bridge Sofas	0
  Full Head	No

• Fishing

  Fishing Rod Holders	Standard
  Number of Fishing Pedestal Chairs	1
  Fishbox Pump	Yes

• Air Conditioning & Heater

  Cockpit Heater	No
  Cabin Heater	No
  Bridge Heater	No

• Towing & Hauling

  Trailer

  Standard

• Audio & Communication

  Satellite

  No

Model History

Similar to 2017 Ranger MPV™ 1760

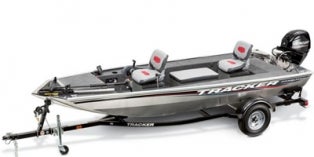

2017 TRACKER Panfish™ 16

MSRP: $10,495

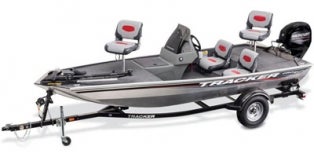

2017 TRACKER Pro 160

MSRP: $9,795

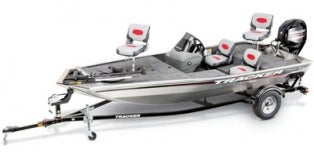

2017 TRACKER Pro 170

MSRP: $10,495

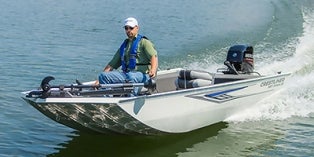

2017 Crestliner Outlook Stick Steer 1657
